2GIG-PIR1E-345—Battery Replacement


When it is time to replace the battery in your motion detector, you will see an alert on your system panel.

The 2GIG-PIR1E-345 motion detector requires 1 CR123A battery, which can be purchased from Indiana Alarm, local hardware store, mass retailer, or battery store.

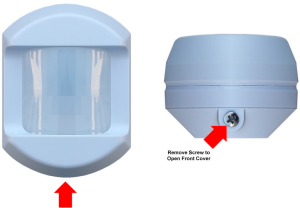

pir1e

Step-by-Step Instructions:
1. Locate the sensor with a low battery on either your system panel
3. Remove the bottom screw and open the motion detector cover, leaving the backplate in place.
4. Remove the old battery.
5. Make sure the area where the batteries are stored is clean and there is no corrosion.
6. Place a new CR123A 3-volt lithium battery into the sensor.
7. Put the cover back on, and fasten the screw removed in step 3.
8. Arm and disarm the system to clear the bypassed sensor.
9. Check if the low battery status has cleared
